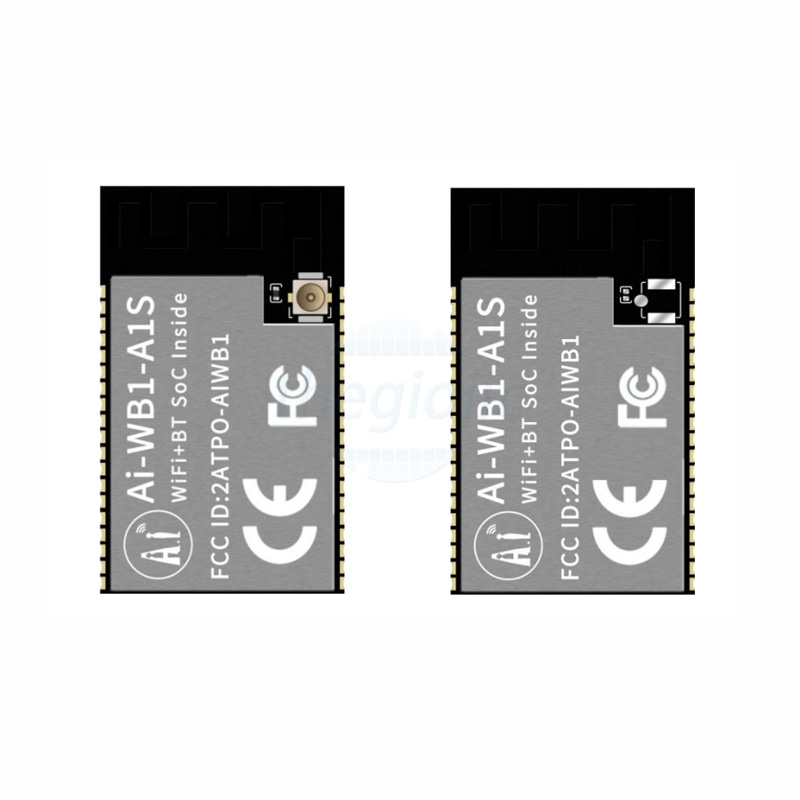

Ai-WB1-A1S Ai-Thinker WiFi Bluetooth Module

Name: Ai-WB1-A1S Ai-Thinker WiFi Bluetooth Module
Brand: AI-Thinker
SKU: 34310
Price: 90000 VND
Availability: OutOfStock

Thương hiệu AI-Thinker

Mô tả 288KB SRAM, bộ nhớ flash: 2Mbyte

Hết hàng (Đặt mua để có hàng sớm)

Số lượng mua:

Min: 1

Bội số: 1

0 Phản hồi

Số lượng mua (Cái)	Đơn giá (VND)
1+	90.000

Giao hàng toàn quốc

Thanh toán khi nhận hàng

Cam kết đổi/trả hàng

Thông số

188 Sản phẩm tương tự

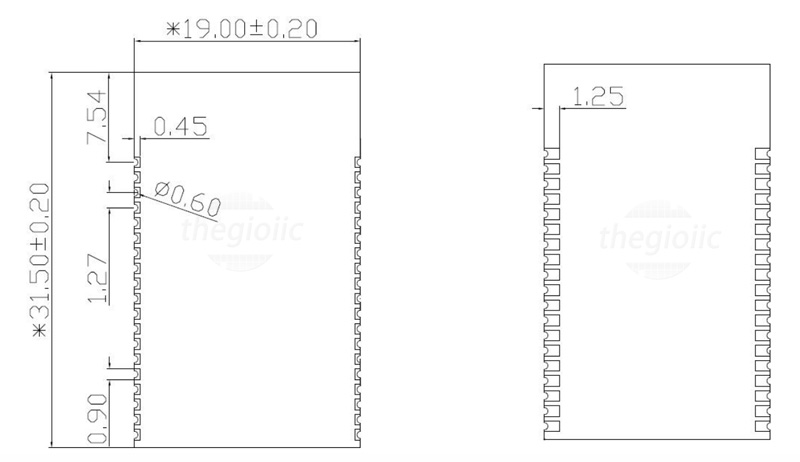

The package is SMD-38
Support IEEE 802.11 b/g/n protocol
Wi-Fi Security Support Wi-Fi WMM/WMM-PS/WPA/WPA2 /WPS
Support 20/40MHz bandwidth, the highest rate is 150 Mbps
Support BLE 1M rate working mode, support BLE4.2 protocol
Support Station, Station + SoftAP , SoftAP mode
Integrated ES8311 voice codec chip
Support 32-bit XT804 CPU，288KB RAM
The MCU has a built-in Tee security engine, and the code can distinguish betweensecurityevents and non-security events
Integrated SASC/TIPC, memory and internal modules/interfaces can be configuredwithsecurity attributes to prevent non-secure code access
Enable firmware signature mechanism for secure Boot/upgrade
With firmware encryption function to enhance code security
Firmware encryption keys are distributed using asymmetric algorithms for enhancedkeysecurity
Hardware encryption module: RC4256, AES128, DES/3DES, SHA1/MD5, CRC32, 2048RSA, true random number generator
Support SDIO, PSRAM, SPI, UART, I2C, PWM, ADC, Touch sensor, Duplex I2SandGPIO, microphone, speaker and other interfaces
Integrated Wi-Fi MAC/BB/RF/PA/LNA/Bluetooth
Supports multiple sleep modes
Support secondary development, integrated Windows, Linux development environment
