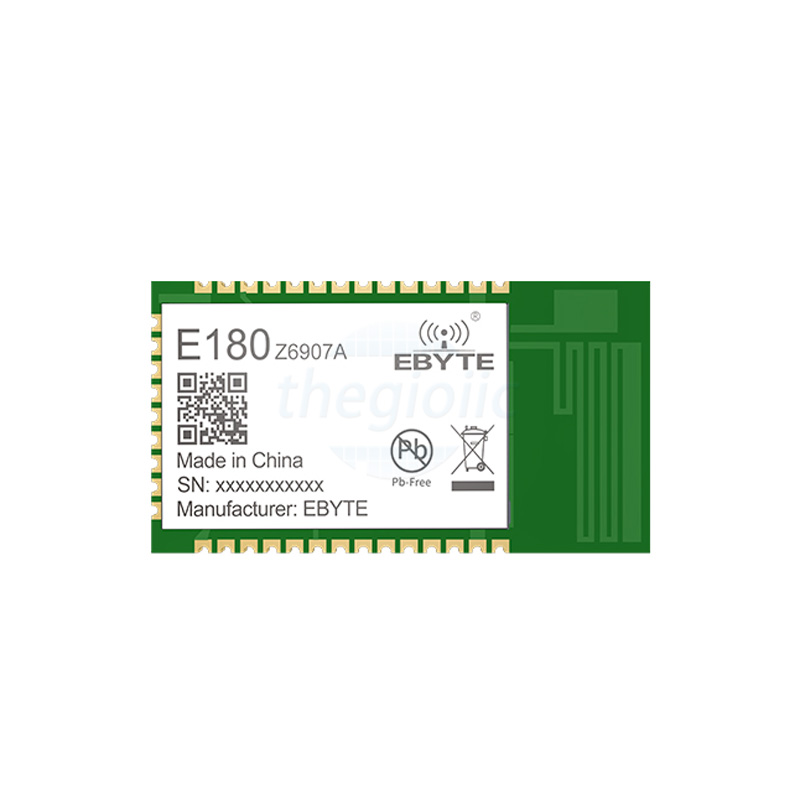

E180-Z6907A Module Zigbee 130m
Thương hiệu
EBYTE
Mô tả
Nguồn: 1.9 - 3.6 VDC, giao tiếp: UART
Hết hàng
(Đặt mua để có hàng sớm)
0
Phản hồi
|
Số lượng mua
(Cái)
|
Đơn giá
(VND)
|
| 1+ | 105.000 |
Giao hàng toàn quốc
Thanh toán khi nhận hàng
Cam kết đổi/trả hàng
Thông số
25 Sản phẩm tương tự| Thuộc tính | Giá trị | Tìm kiếm |
|---|---|---|
|
Giao tiếp |
UART |
|
| RoHS |
|
|
| 25 Sản phẩm tương tự | ||
Mô tả sản phẩm
Thông số kỹ thuật:
- Model: E180-Z6907A
- IC chính: TELINK TLSR8269
- Điện áp hoạt đông: 1.9 - 3.6 VDC
- Giao tiếp: UART
- Tần số: 2405~2480 MHz
- Công suất: 7dBm
- Khoảng cách truyền tối đa trong điều kiện lý tưởng: 130m
- Hỗ trợ ăng ten: PCB

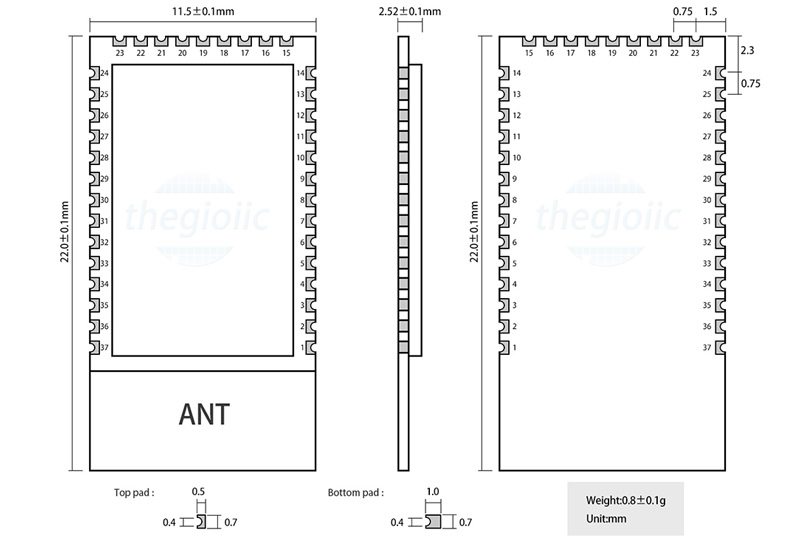

- Kích thước: 11.5x22mm

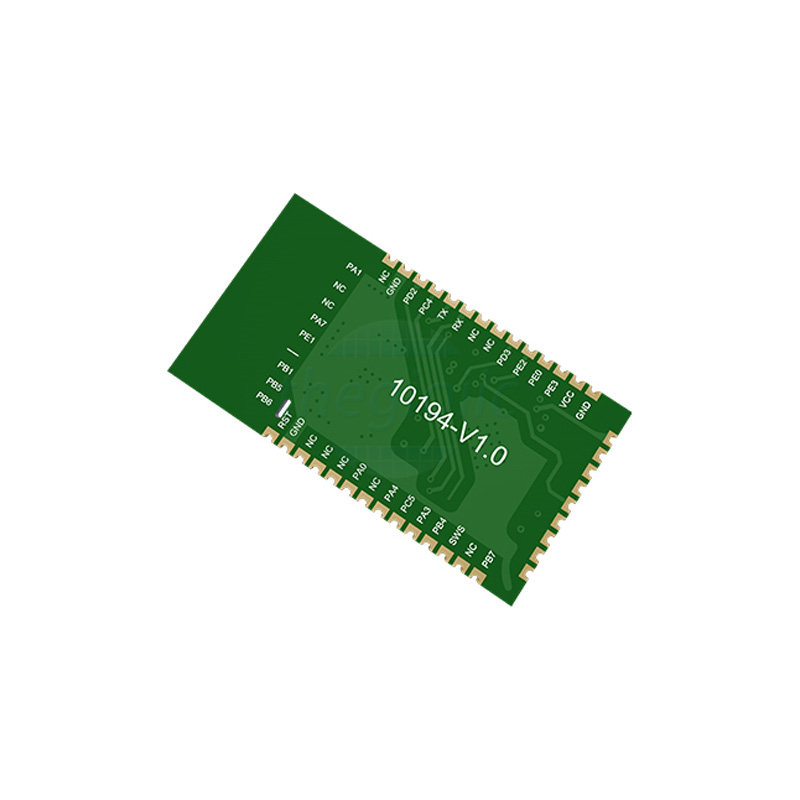

| Pin No. | Pin item | Pin direction | Application |
|---|---|---|---|
| 1 | NC | - | Reserve，floated |
| 2 | GND | - | Ground, connected to power supply reference ground |
| 3 | PD2 | Input | Reserve |
| 4 | PC4 | Input | WAKE pin is mainly used to wake up the sleeping terminal. It is high level when power is on. When the pin is pulled low externally, the sleeping terminal device will be woken up. |
| 5 | TX | Output | UARTTX pin |
| 6 | RX | Input | UART RX pin |
| 7 | NC | - | Reserve，directly suspended |
| 8 | NC | - | Reserve，directly suspended |
| 9 | PD3 | Input | Working mode switching pin. When the pull-down time is longer than 500ms, the working mode is switched. |
| 10 | PE2 | Input | UART_BAUD_RESET pin is used to reset the device baud rate. The power-on default is high level. In any mode, if this pin is pulled lower for more than 1000ms, the serial port parameters of the module will be restored to the default 115200. |
| 11 | PE0 | Output | ACK pin is used to indicate the last user data transmission status. This pin is pulled low before the transmission is started, and the pin is pulled high after the transmission is successful. |
| 12 | PE3(GPIO0) | Input/Output | GPIO input/output port 0 |
| 13 | VCC | - | Module power supply positive reference voltage, voltage range |
| 14 | GND | - | Ground, connected to power supply reference ground |
| 15 | PA1(GPIO1) | Input/Output | GPIO input/output port 1 |
| 16 | NC | - | Reserve，floated |
| 17 | NC | - | Reserve，floated |
| 18 | PA7 | Output | AUX pin indicates the current working status of the device. When the pin is low level, it indicates that the device is busy, and high level indicates that the device is idle. |
| 19 | PE1(GPIO2) | Input/Output | GPIO input/output port 2 |
| 20 | NC | - | Reserve，floated |
| 21 | PC8(ADC1) | Input | ADC detection port 1 |
| 22 | PC9(ADC2) | Input | ADC detection port 2 |
| 23 | PC10(ADC3) | Input | ADC detection port 3 |
| 24 | PC11(ADC4) | Input | ADC detection port 4 |
| 25 | NC | - | Reserve，floated |
| 26 | SWS | - | Reserve |
| 27 | PF2(PWM0) | Output | PWM output port 0 |
| 28 | PF4(PWM2) | Output | PWM output port 2 |
| 29 | PF5(PWM3) | Output | PWM output port 3 |
| 30 | PA4 | Output | LINK pin shows current network state, high level means access to network |
| 31 | NC | - | Reserve，floated |
| 32 | PF3(PWM1) | Output | PWM output port 1 |
| 33 | NC | - | Reserve，floated |
| 34 | NC | - | Reserve，floated |
| 35 | NC | - | Reserve，floated |
| 36 | GND | Input/Output | Ground, connected to power supply reference ground |
| 37 | nRESET | Input | Reset pin |
